Why Your 6mm ARC or 6.5 Grendel Keeps Jamming (And How to Fix It)

The 6mm ARC and 6.5 Grendel are revolutionary cartridges for the standard AR-15 platform, turning a standard small-frame rifle into a 1,000-yard precision tool or a hard-hitting deer rifle. However, many builders encounter immediate cycling headaches, failure to extract, or catastrophic short-stroking right out of the gate.If your rifle is constantly jamming, you do not have a bad rifle—you have a physics problem. Because these calibers utilize a much fatter case than a standard 5.56 NATO round, they demand completely different internal dynamics.

Standard AR-15 magazines feature a curved geometry meant for tapered 5.56 casings. When you pack tapered 6mm ARC or 6.5 Grendel cartridges into them, the casing walls stack incorrectly, causing the nose of the bullet to dive straight into the feed ramps. You must use specialized, thin-walled stainless steel magazines to ensure proper feeding angles.

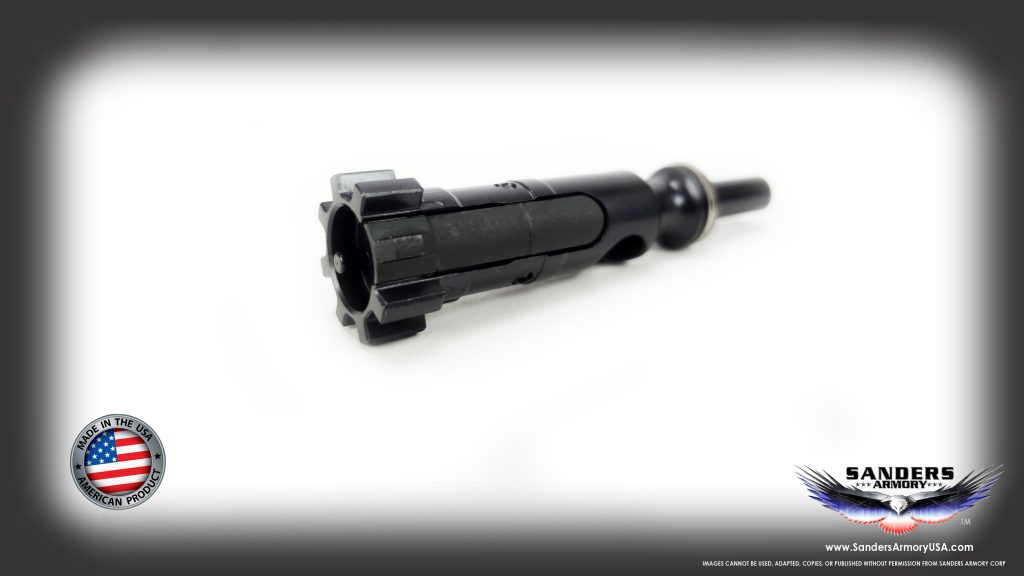

Furthermore, because the casing face is wider, a standard 5.56 bolt carrier group cannot grab the rim. You need a dedicated Type II bolt engineered specifically for the deep 0.136-inch bolt face recess of these calibers. Standard mil-spec extractors and bolt faces will lead to sheared lugs and failure to extract.

Both 6mm ARC and 6.5 Grendel carry unique gas expansion curves. If you run a standard, fixed low-profile gas block, your system is likely severely overgassed—especially if you intend to run a suppressor.

Overgassing causes the bolt carrier to move rearward too quickly while the casing is still expanded against the hot chamber walls. This results in the extractor ripping right off the rim, leaving a stuck case in the chamber, or cycling so fast that it skips over the next round entirely (short stroking).

Depending on your patience and budget, you can resolve these reliability issues using one of two methods:

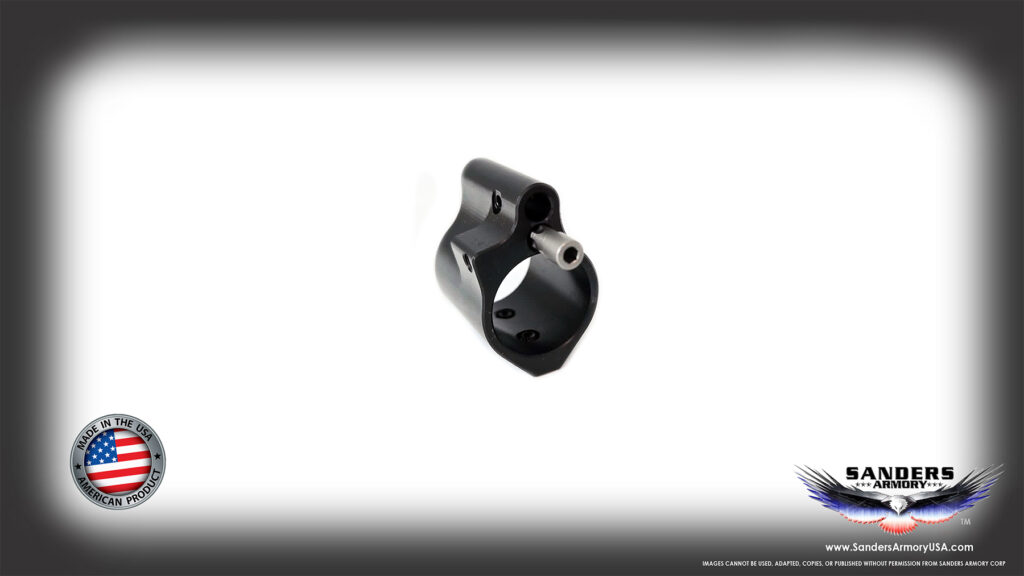

If you already built your upper and are fighting reliability issues, the single most impactful upgrade you can make is swapping your fixed gas block for an Adjustable Gas Block. By tuning the gas flow down to the exact threshold your ammo requires, you soften the recoil pulse, slow down the bolt carrier velocity, and achieve clean, perfect 3 o’clock casing ejections. Combine this with a heavy-duty Type II bolt kit to ensure consistent rim extraction.
