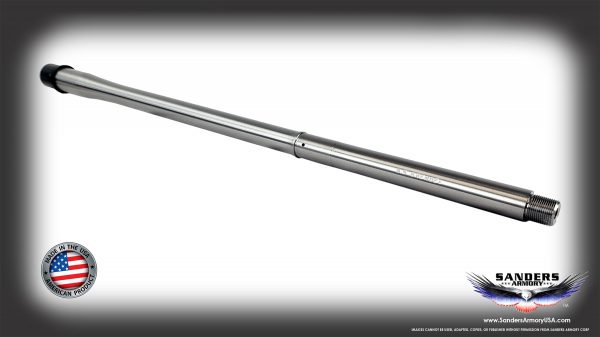

20” Match Grade 6.5 Grendel 416R Stainless Steel Hand Lapped 5R Rifling

$205.00

The Sanders Armory 20″ Match Grade 6.5 Grendel (Type II) 416R Stainless Steel Hand Lapped barrel features 5R rifling with a 1:8 Twist rate, in addition to a Nitride Barrel Extension and a Rifle-Length Gas system.

Expect nothing less than professional grade 6.5 Grendel barrels from Sanders Armory.

In stock (can be backordered)

Description

The Sanders Armory 20″ Match Grade 6.5 Grendel (Type II) 416R Stainless Steel Hand Lapped barrel features 5R rifling with a 1:8 Twist rate, in addition to a Nitride Barrel Extension and a Rifle-Length Gas system.

Expect nothing less than professional grade 6.5 Grendel barrels from Sanders Armory.

U.S. made and manufactured to MIL-SPEC specifications exceeding the ISO-9002 Quality Standard. Provided with a Limited Lifetime Manufacturer Warranty against manufacturers defects.

Specifications:

  • Brand: Sanders Armory
  • Barrel Caliber:  Match Grade 6.5 Grendel II
  • Barrel Length:  20 Inch
  • Twist Rate: 1:8 Twist
  • Rifling Process: 5R Button Rifled
  • Barrel Prep: Hand Lapped
  • Barrel Concentricity held to .002
  • Rifling Test: Air Gauged
  • Material: 416R Stainless Steel
  • Finish: Polished Stainless Steel
  • Barrel Interior Finish: Polished Stainless Steel
  • Profile: Light Weight Contour HBAR
  • Gas System Length: Rifle-length Gas Tube
  • Seat Diameter Gas Block: .750 Gas Block
  • Gas Block Dimple: Yes
  • Crown Thread Pattern: 5/8 X 24 Thread Pitch
  • Barrel Crown: Single Point Cut Polished 11-degree Target Crown
  • Barrel Extension: M4 Nitride Coated
  • Feed Ramps: M4 cut Barrel extension
  • Weight: 2 Lbs 5oz.

What is 5R Rifling?

Retired Army man, Barrett “Boots” Obermeyer developed 5R rifling as a gunsmith in his families store and holds a High Master Classification in both high-power rifle disciplines, is a Distinguished Rifleman and has won numerous shooting awards at both state and national levels. The best definition comes from “Boots” himself …

“5R is the form of rifling I developed for use in most target barrels and in many sporting barrels,” he explained. “These barrels have 5 grooves, and the lands have angular sides. I have observed that bullet jackets will deform such that they remain closer to the R-form lands than they will to the sharp-edged lands present in conventional-style rifling. This reduces powder fouling at the corner of the grooves. The angled form of the lands also helps to reduce jacket failures in quick-twist barrels.”



The diagram above of rifling profiles shows the difference between traditional rifling (top) and 5R rifling (bottom). Note that the edges of 5R are not square (they don’t cut into bullet jacket as much) and that with 5R, the lands are opposite of grooves while with traditional rifling, lands are opposite lands and grooves are opposite grooves.

SHIPPING LIMITATIONS:

NO shipping to District of Columbia (Washington, D.C.); Massachusetts; Connecticut; Chicago, Cook County, Deerfield, Highland Park or Aurora Illinois; New Jersey; New York; Puerto Rico; Hawaii; or Canada. NO international shipping all must be within the 48 Contiguous United States. NO APO/PPO/FPO’s.

Additional information

Weight 2.6875 lbs
Dimensions 20.5 × 1 × 1 in
